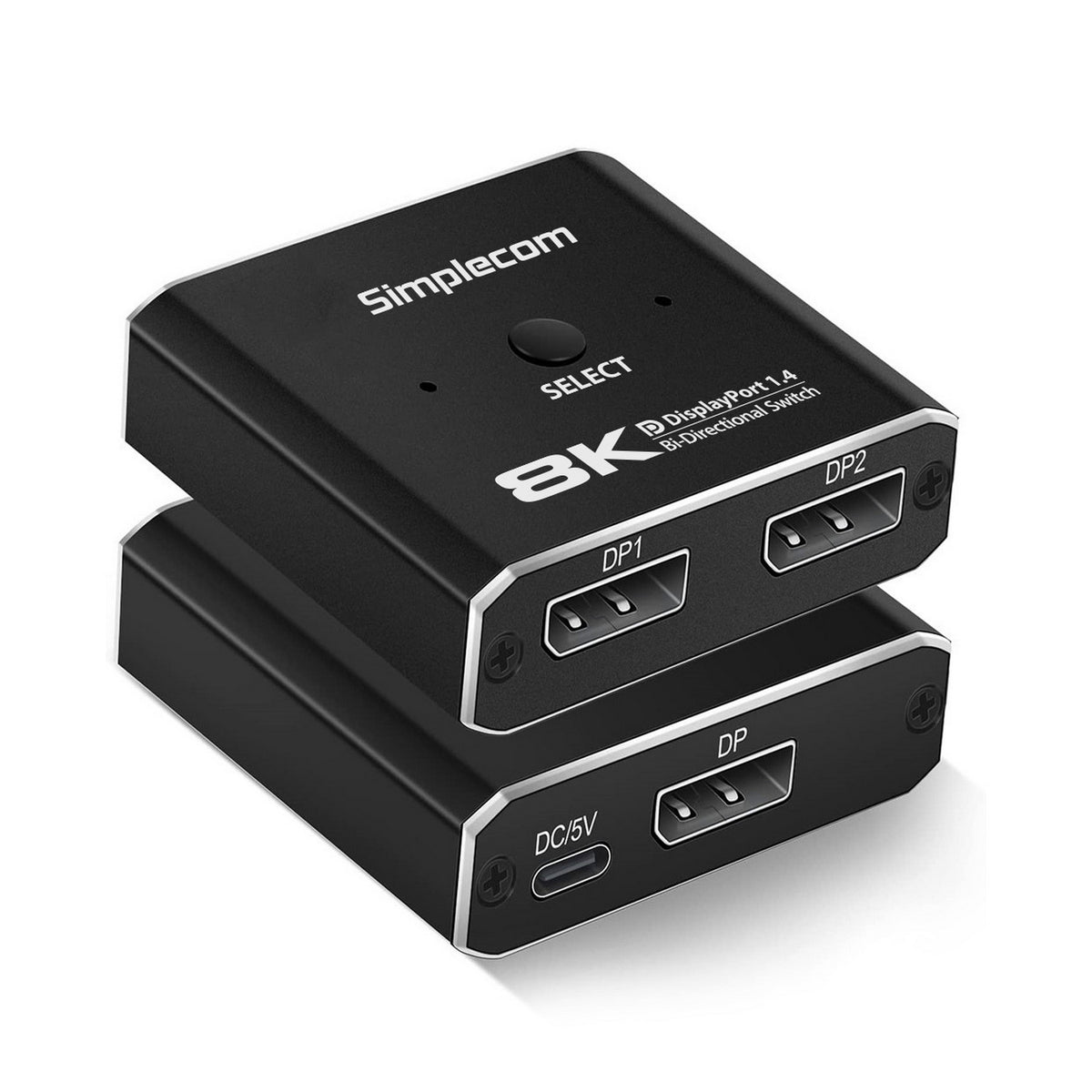

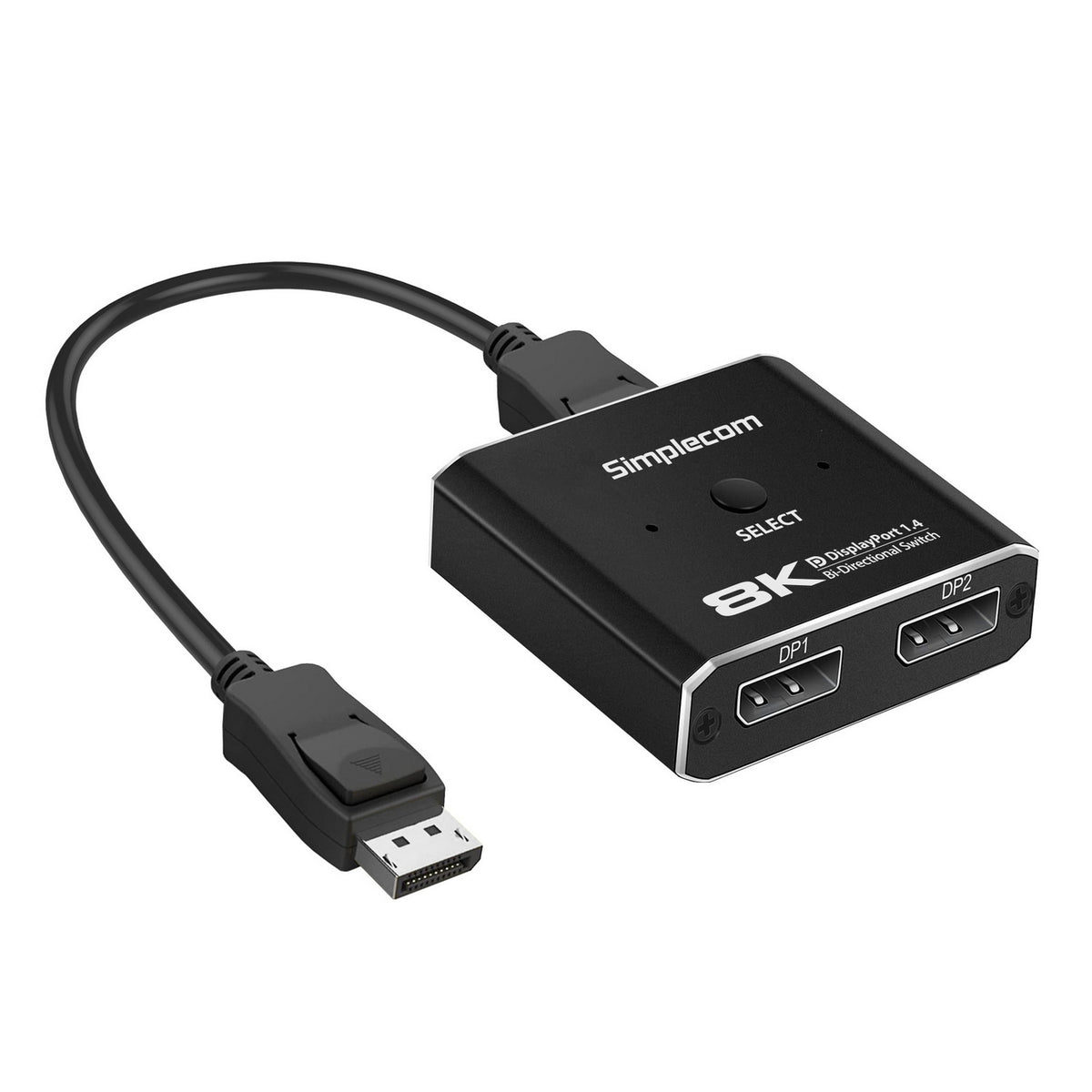

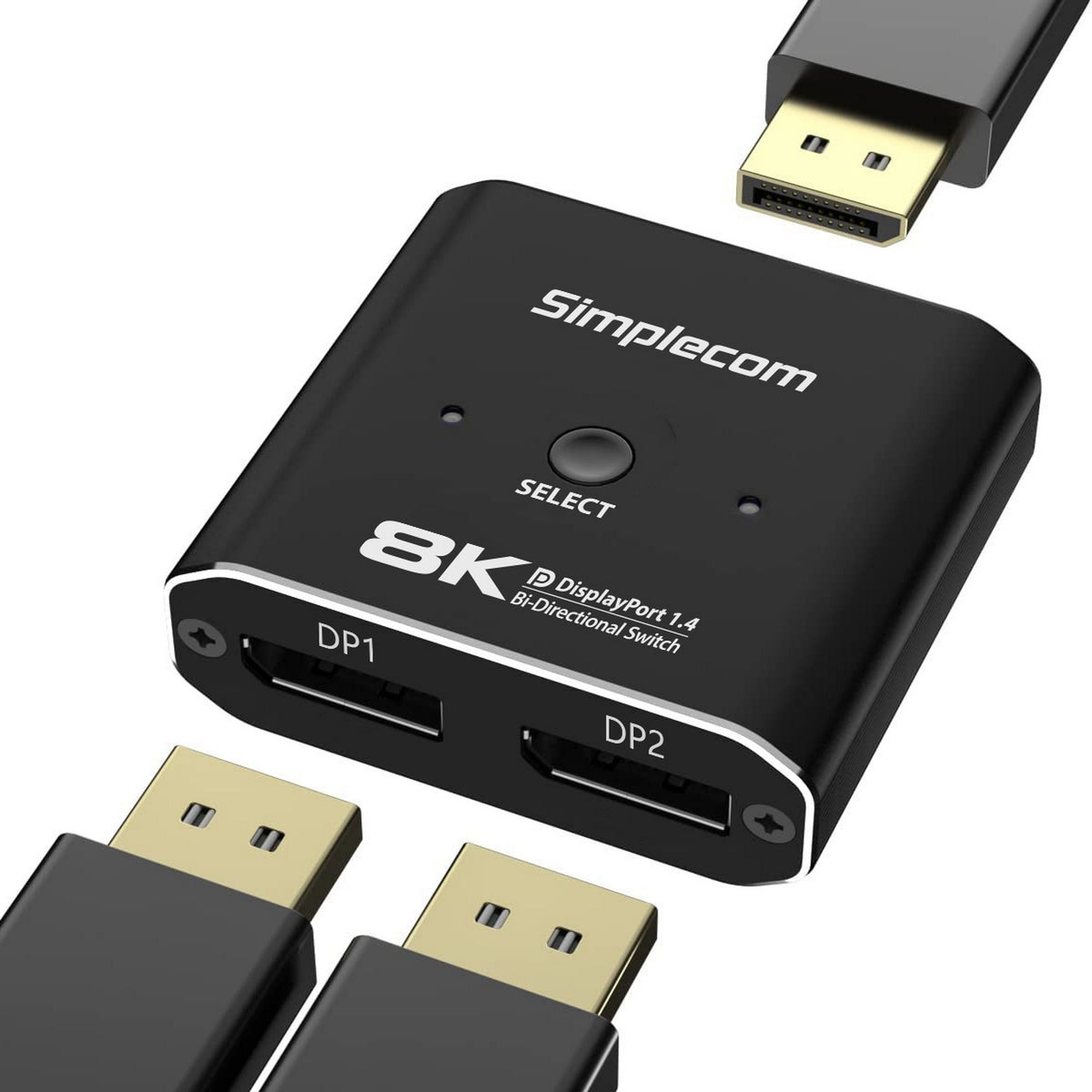

Simplecom CM202 Bi-Directional 2 Way DisplayPort Switch Selector DP 1.4 8K

CM202 is a bi-directional 2-way DisplayPort switch that can be used to switch two different DisplayPort sources or DisplayPort displays. Toggle button allows you to quickly select a video source or display, without having to swap cables.

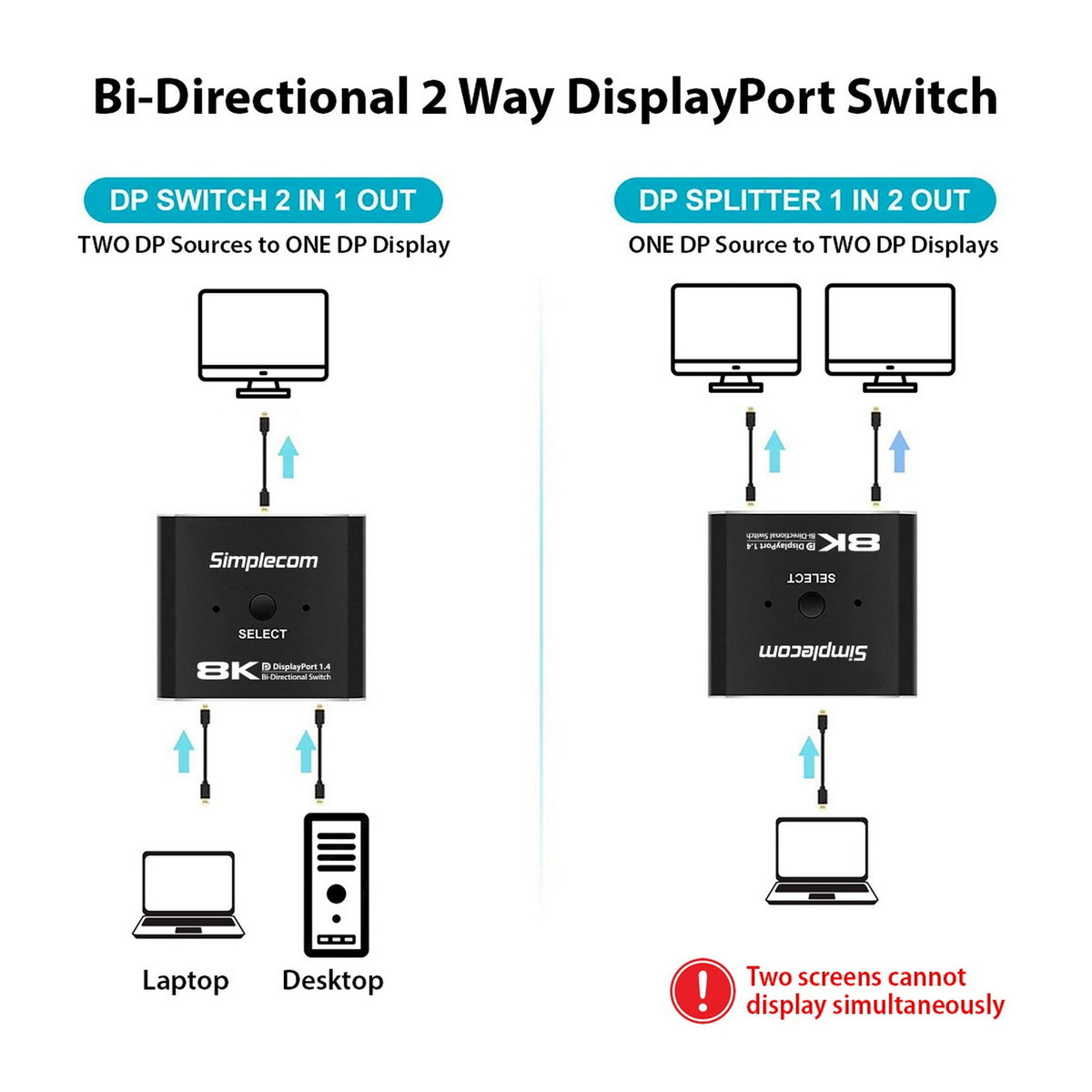

You can connect two DisplayPort sources, such as laptop and PC, to one DisplayPort on your monitor. It also functions in the opposite direction, allowing you to connect a DisplayPort source for toggling between two monitors. Note that two screens cannot display simultaneously under 1 input 2 outputs mode.

This switch is DisplayPort 1.4 compliant, and provides high bandwidth up to 32Gbps, which supports video output up to 8K@30hz. Portable and compact size, easy to install. The durable aluminium alloy housing efficiently dissipates heat.

Features

• Bi-Directional DisplayPort switch for toggling between 2 DP sources or displays
• Quickly switch video sources or displays without having to swap cables
• Durable aluminium alloy casing
• DisplayPort 1.4 compliant, support bandwidth up to 32Gbps
• Backwards compatible with previous DP version
• Support video resolution up to 8K@30hz
• Plug and Play, Powered by USB

Specifications

• Model: CM202
• DisplayPort Version: DP 1.4
• Video Resolution Support: up to 8K@30Hz, 4K@120Hz, 2K@144Hz, 1080P@240Hz
• HDR Support: Yes
• Max Bandwidth: 32Gbps
• Max cable distance: 3M (Input + Output)
• Power Input: USB-C, DC 5V (power adapter is not included)
• Dimension (L x W x H): 59x53x15mm
• Weight: 35g

Package Contents

• 1 x Bi-Directional DisplayPort Switch
• 1 x DisplayPort cable
• 1 x USB Power Cable

Important Notes:

• For stable connection, the max total cable length is 3M (Input + Output)
• This is a manual DisplayPort switch and does not support automatic switching
• Two screens cannot display simultaneously under 1 Input 2 Outputs mode
